Welcome to course planning with Condes!  This page gives you a brief introduction.  Please have a look at the possibilities, and then continue with How to get a quick start  and Introduction to on-screen course planning.

You can press F1 to get "context sensitive" help relevant to where you are in Condes.

Course planning with Condes

Condes is a graphical editor that lets you draw your courses on top of a map shown on the screen.  Condes helps with the tedious tasks.  The program keeps track of controls and courses, and it prints the courses and maps as well as creates PDF and EPS files with the courses and maps.

Condes stores all the course planning data (controls, courses, classes, etc) for an orienteering event in a Condes event file (a .WCD file).  You create controls, which can be combined into courses.  The information about a control is shared among all the courses that visit the control.  When you move the control, all courses are automatically updated.  Data is always kept "consistent", and you can concentrate on the creative task of designing good courses.


Condes uses map files, either an OCAD file, or a bitmap file (BMP/GIF/JPG/PNG/TIF), for example exported from Adobe Illustrator.

Multiple Canvases

An event file has 5 "canvas"-es, or backgrounds if you like, that you can use to design different page layouts at the same event.  On each canvas you can place a map. The same map can be used on different canvases, allowing for different graphical layouts and/or different print scales.  Or different maps can be used on each canvas, allowing for courses that span multiple maps.

The same controls and courses can be shown on different maps, by configuring canvases accordingly:

  • If the courses extend across two maps, you can place the two maps on each their canvas.
  • If you use two different maps at different map scales, you can place them on two canvases.

Graphics Layout

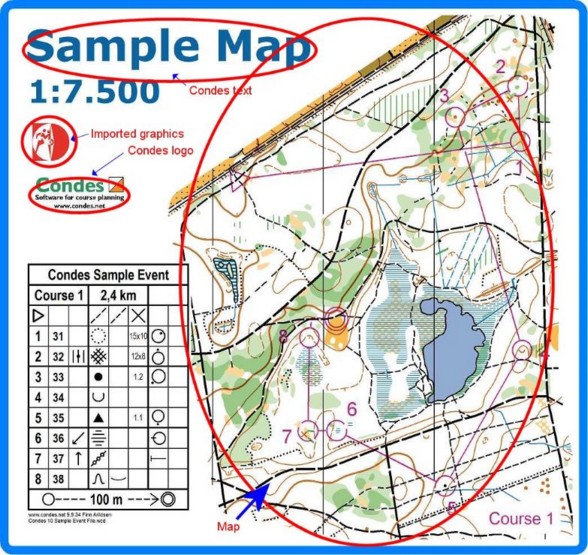

In addition to setting up the course on the map, Condes lets you add texts and graphics from existing files, so that you can compose an attractive layout adapted for the event.

You can add standard texts and free format texts.

A standard text is for example: course name, event name, map scale... A Free format text is anything you type.

For graphics, Bitmap files (BMP/GIF/JPG/PNG/TIF), Windows metafiles (EMF/WMF), and OCAD files (OCD) are supported.

The map on a canvas can also be used as the source of a graphics object.  This allows you to create a layout using the texts and legends already in the map.  It also allows you to use an enlarged portion of the map and course in the layout.

Control Descriptions

can be printed on the map or separately, as pictorial or textual.

Course Planning

You plan your courses with the map on the screen. Condes helps you keep track of the control sites. Condes ensures that when you move a control, all the courses that use the control are kept up to date.

Condes supports:

  • Individual courses (Foot orienteering, Ski orienteering, MTB orienteering, Trail orienteering)
  • Relay courses (extended FARSTA and leg forks)
  • Courses with loops (one-man relays, butterflies, diamonds (Phi))
  • Calculates course lengths and control site loads
  • Shows attack angles for each control, unused controls etc.
  • Punch patterns for pin punches and Emit backup slips
  • Prints course name and/or relay team number on the back of the map

Map and Course Printing

Condes can print the courses and maps on a color laser or ink jet printer.

Condes can print multiple maps on the same page. You can fill up the page with copies of the same course, or you can print different courses on the page.

Condes can print maps and courses with "overprint effect", which improves map readability by allowing underlying details to be visible that would otherwise be covered.

As an alternative to using "overprint affect", Condes can "merge" the course overprint under the top map color layers.  This alternative is recommended by the IOF Map Commission for IOF events.

Relay Teams Handling

In a spreadsheet style window, you can enter the relay teams, and you can assign course variations to each team member.  Condes can "populate" the teams, or you can enter the course variations manually.  Condes uses a sophisticated algorithm to ensure maximum variation between teams.

When you have finalized the teams, you can:

  • export the teams to the event administration system for punch checking.
  • print individual maps for each team member, with the team number and leg number on the back of the page.

Course Data

Condes exchanges data with an event administration system

  • You can export course data for punch checking.
  • You can import relay teams from the event administration system, then assign course variations to team members, and export the relay teams with the assigned course variations back to the event administration system.

The file format used is the IOF standard, XML based.

Geo-referencing for GPS/tracking applications

Condes exports maps and courses geo-referenced in KMZ format, SVG format or GPX format.  These are formats used by popular GPS and tracking applications, such as O-Track, LiveLox, MapRun and GPS Orienteering.

Exported PDF files are also geo-referenced, so that you can import them into for example Avenza Maps.


Condes can print listings of the information that is stored for an orienteering event:

  • All controls
  • All courses
  • All classes
  • Control/course relationship
  • Relay variations
  • Proposed relay team combinations

Course Overprinting

Condes can also print the courses onto existing offset printed maps.

Course Layout Export

Condes can export maps and courses in several different formats:

  • PDF format for digital and offset printing
  • EPS format for offset printing.
  • OCD format for import into OCAD,
  • BMP/JPG/PNG/TIF format for posting on the internet.
  • KMZ format for GPS applications (O-Track, Livelox and GPS Orienteering)
  • KML format for GPS applications (MapRun)
  • SVG format for GPS applications
  • GPX format for GPS applications

O-Track (www.o-track.dk)
O-Track is a service which makes tracking, viewing and sharing orienteering easy and fun for both beginners and experienced orienteers.
As a runner you can use your GPS-Watch or your phone to track your activity, upload it to an event on O-Track and then view how you did in comparison to other users.
As a club or organizer you can create an activity in a few very quick and simple steps and thus offer a great tracking service to the participants of your race.

O-Track is developed and operated by TracTrac (www.tractrac.dk) in cooperation with the Danish Orienteering Federation (DOF)
Livelox (www.livelox.com)
Livelox is an analysis tool for orienteering. The service was developed by and continues to be supported by the company Knowit Uppsala AB together with the Swedish Orienteering Federation. The idea is that it should be easy to visualize GPS-track and route choices on a map.
GPS Orienteering (www.hippsomapp.se)
The main purpose of GPS Orienteering app is to be able to practice orienteering in an efficient way without having to set out control points. GPS Orienteering is developed by Ulf Ärlig, Sweden
